POS-956
Product overview

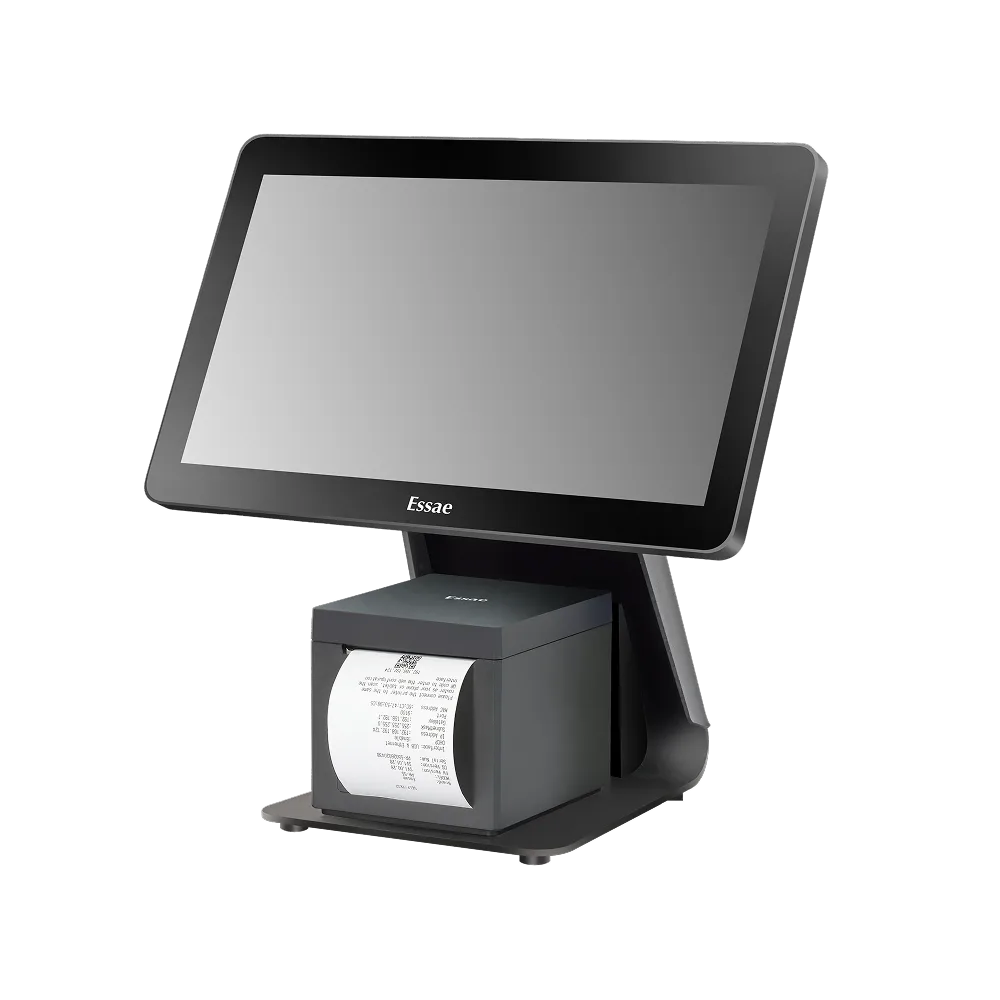

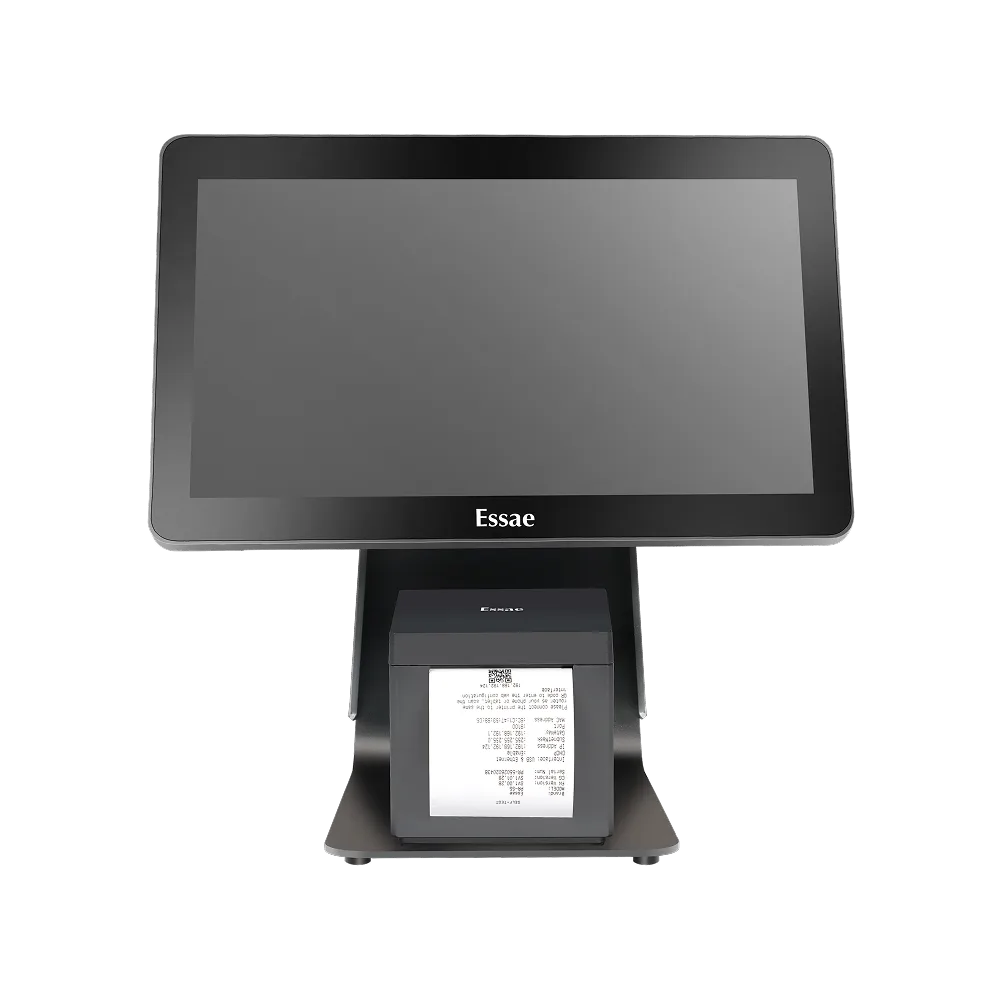

The Essae POS-956 Series is a powerful POS hardware terminal with an integrated thermal printer, designed to deliver speed, reliability, and convenience at the billing counter. With its widescreen display, fanless Intel processors, and built in 3 inch direct thermal printer, the POS-956 combines performance and practicality in one compact unit.
Available in multiple configurations POS-956N (Intel N95), POS-956C Core i3, and POS-956C Core i5 – this series offers flexibility to suit diverse business needs.
Technical specifications
|
Model
|
POS-956N
|
POS-956C
|
|
|---|---|---|---|
|
CPU |
Intel Processor N95, Quad-core, 3.40 GHz (Fanless) |
Intel Core i3-1215U, 6-core, 4.40 GHz (Fanless)
Intel Core i5-1235U, 10-core, 4.40 GHz (Fanless)
|
|
|
Storage Memory |
128 GB M.2 NVMe SSD or 256 GB M.2 NVMe SSD
|
||
|
System Memory |
4 GB or 8 GB DDR4 RAM 1 x SO-DIMM Slot4 GB or 8 DDR4 RAM 1 x SO-DIMM Slot
|
Operator display
|
|
|
|---|---|
|
Size |
39.6 cm (15.6’’) TFT LCD with LED backlight.
|
|
Resolution / Brightness |
1366x768 / 275 nits
|
|
Touch Screen |
Projected Capacitive Touch (PCAP) - True Flat
|
External Interface Ports
|
|
|
|---|---|
|
USB |
6 |
|
COM port (DB-9)
|
2
|
|
Network |
1 x Gigabit LAN
|
|
Cash drawer
|
1 x RJ11
|
|
Audio |
1 x Line out & Mic In
|
|
Factory options |
1 x M.2 Wi-Fi + BT
|
Environmental
|
|
|
|---|---|
|
Operating temperature |
0 ⁰C ~ +45 ⁰C
|
|
Power adapter |
DC 12 V / 5 A & 24 V / 2.5A
DC 12 V / 7 A & 24 V / 2.5A |
|
Dimension (W X D X H) |
387 mm x 227 mm x 391 mm |
|
In-built printer
|
Thermal printer, 79.5±0.5 mm paper, 200 mm/sec,
Auto-cutter 2D Barcode : QR code support, Interface : USB
|
Optional accessories
|
|
|
|---|---|
|
Cash drawer |
5-Bill/8-Coin metal cash drawer with lock & key and micro switch
|
|
MSR |
1-2-3 Tracks magnetic stripe card reader
|
|
Customer display |
20 chars x 2 lines VFD Green

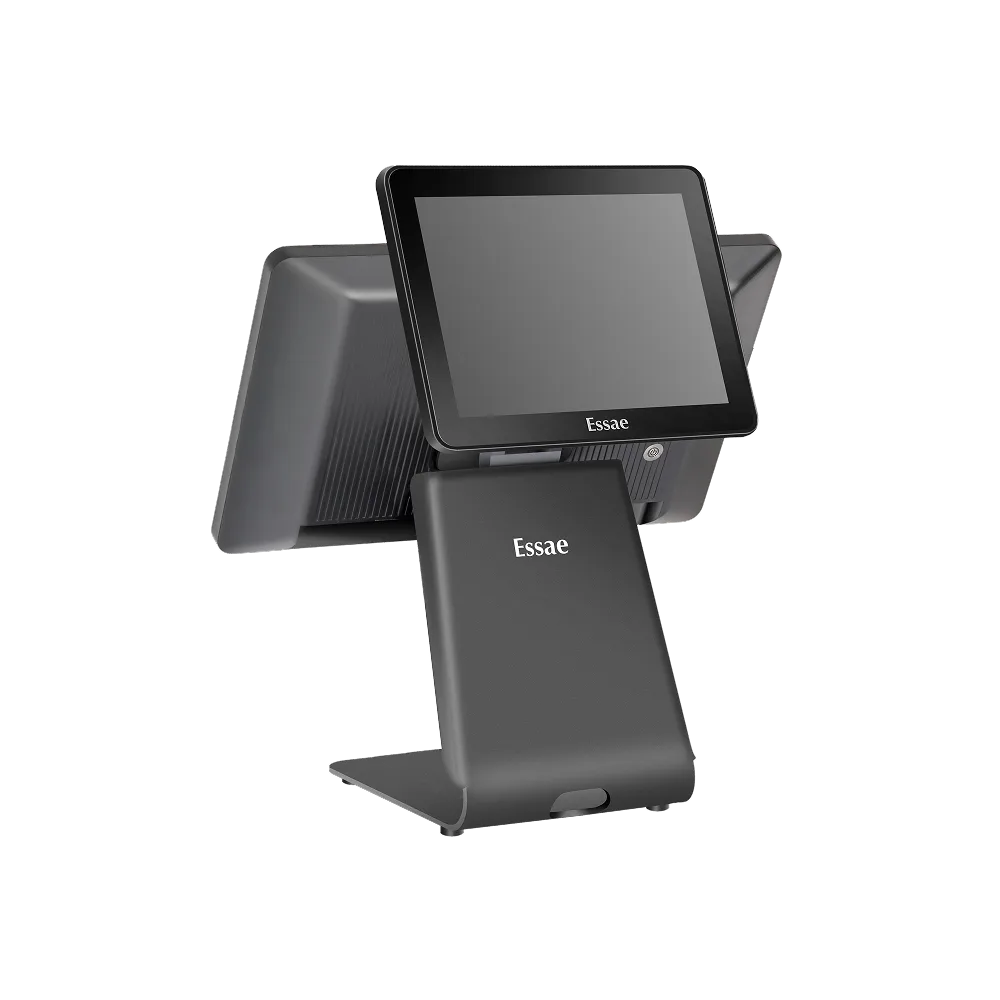

9.7 inch Second display non touch
|
|
Net Weight |
7 kg (approx)
|
Operating system
|
|
|
|---|---|
|
Operating system supports |
Windows 10 loT
Linux (subject to confirmation)
|
Benefits of POS-956 Pos with printer
- All-in-one solution: Combines POS terminal and thermal printer in one unit.
- Durable hardware: Built for continuous operation in retail and hospitality environments.
- High speed printing: Integrated printer delivers receipts at 200 mm/sec.
- Clear widescreen display: 15.6" LED backlit screen improves visibility and reduces errors.
- Compact and ergonomic: Saves counter space by merging terminal and printer.
- Seamless connectivity: Works with cash drawers, customer displays, and card readers.
- Stable operation: Fanless design ensures quiet, reliable performance.
Why choose Essae Pos with printer
Billing requires speed, accuracy, and convenience. The Essae POS-956 Billing machine with printer ensures all three by combining a widescreen POS terminal with a built-in printer.
Integrated printer advantage
Hardware reliability
Efficient operations
Customer confidence
Future ready terminal
Applications of POS-956 Point of Sale System
Frequently asked questions
What processor options are available in the POS-956 series?
What is the display specification?
How durable is the integrated printer?
What accessories are supported?
Why choose Essae POS hardware with printer?
