POS-516N
POS-516N

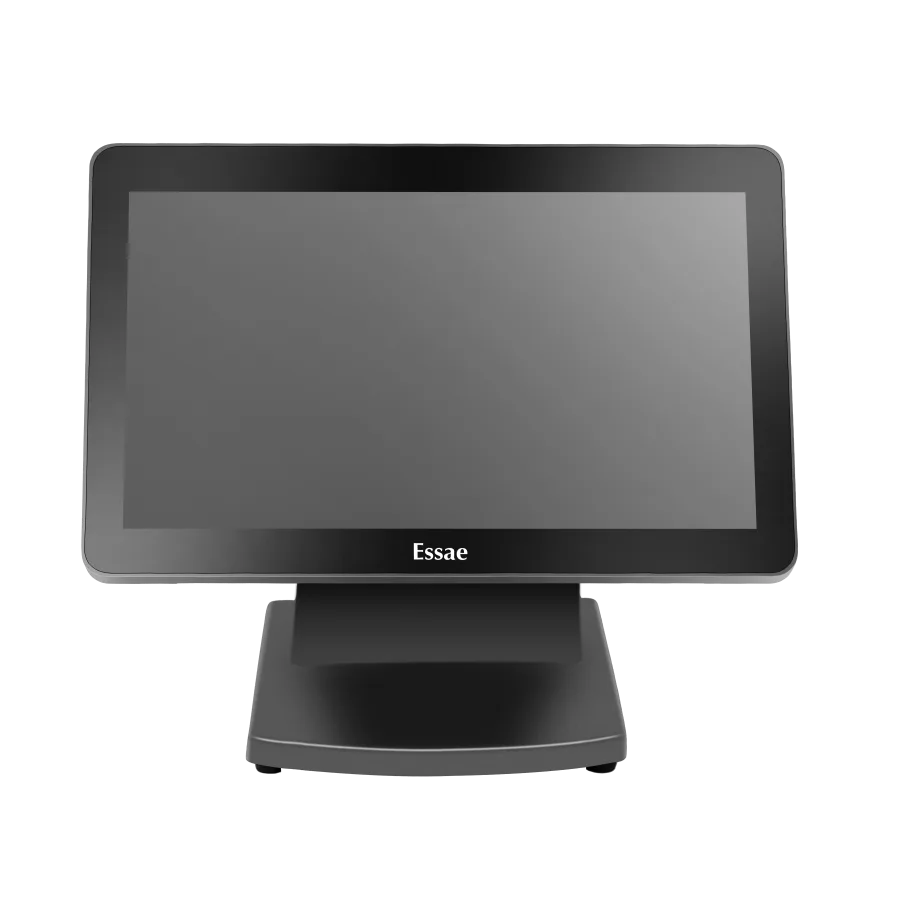

Product overview
The POS-516N Widescreen POS System is a high performance, space efficient POS solution designed for seamless business operations. Powered by the latest Intel N95 processor, it delivers reliable speed and efficiency for demanding retail and hospitality environments. Built with an advanced copper heat sink cooling system, fanless. Its sleek widescreen 15.6” TFT LCD with LED backlight provides clear visibility and an enhanced user experience. Engineered for convenience, the system is easy to service, reducing downtime and operational hassle. Backed by a 3-year warranty, the POS-516N is a dependable and long lasting solution for modern businesses.
12th Gen Processor
Fanless
Easy to service
M.2 NVMe SSD
Windows
Widescreen
Technical specifications
|
Model
|
POS-516N
|
|---|---|
|
CPU |
Intel Processor N95, Quad-core, 3.40 GHz (Fanless)
|
|
Storage Memory |
128 GB M.2 NVMe SSD or 256 GB M.2 NVMe SSD |
|
System Memory
|
4 GB or 8 GB DDR4 RAM 1 x SO-DIMM Slot
|
Operator display
|
|
|
|---|---|
|
Size |
39.6 cm (15.6’’) TFT LCD with LED backlight.
|
|
Resolution / Brightness |
1366x768 / 275 nits
|
|
Touch Screen |
Projected Capacitive Touch (PCAP) - True Flat
|
External Interface Ports
|
|
|
|---|---|
|
USB |
5 |
|
HDMI
|
1
|
|
COM port (DB-9) |
2 |
|
Network |
1 x Gigabit LAN |
|
Cash drawer |
1 x RJ11 |
|
Audio |
1 x Line out & Mic In |
|
Factory options |
1 x M.2 Wi-Fi + BT |
Environmental
|
|
|
|---|---|
|
Power adapter |
DC 12 V / 5 A
|
|
Operating temperature |
0 ⁰C ~ +45 ⁰C
|
|
Dimension (W X D X H) |
387 mm x 219 mm x 330 mm
|
Optional accessories
|
|
|
|---|---|
|
Printer |
Thermal printer, 79.5 + 0.5 mm paper, 220 mm/sec, Auto-cutter
2D Barcode : QR code support, Interface : Serial+USB+LAN
|
|
Cash drawer |
5-Bill/8-Coin metal cash drawer with lock & key and micro switch
|
|
MSR |
1-2-3 Tracks magnetic stripe card reader |
|
Customer display |
20 chars x 2 lines VFD Green
9.7 inch Second display non touch |
|
Net weight |
5.3 kg (approx)
|
Operating system
|
|
|
|---|---|
|
Operating system supports |
Windows 10 loT, Linux (subject to confirmation)
|
Benefits of POS-516N touch POS machine
- 12th Gen Intel N95 processor ensures fast and reliable POS performance.
- M.2 NVMe SSD delivers ultra fast boot and data access speeds.
- 15.6” widescreen display offers clear and comfortable viewing experience.
- PCAP true flat touchscreen provides smooth and responsive touch control.
- Easy to service design reduces maintenance time and downtime.
- Compact and sturdy build ensures durability in commercial environments.
- Wide operating temperature range ensures stable performance in various conditions.
- High performance at a superior value makes it ideal for retail and hospitality.
Why choose Essae POS-516N touch POS machine
Crystal clear widescreen display
- View more items per screen
- Minimize scrolling
- Enhance customer interaction
Built with quality and durability
- ISO 9001:2015 certified
- DSIR-approved R&D
- 0°C to +45°C operating range
Engineered for quality, built for trust
- Q-V-D-S promise: Quality, Value, Delivery, Service
- 3 advanced manufacturing plants
- 40+ years of industry leadership
Ready for single store or chain expansion
- Works across retail, F&B, and more
- Multi location management
- Custom integrations
Built for modern commerce
- GST compliant invoicing
- Multilingual interface for regional and global use
- Compatible with all major digital payment platforms
Strong after sales support
- Large team of service engineers
- Fast response and issue resolution
- Warranty and ongoing assistance
Applications of POS-916 Point of Sale System
Frequently asked questions
What processor does POS-516N use?
Is the POS-516N system fanless?
What storage options are available in POS-516N?
Does POS-516N support peripheral devices?
Which operating systems are compatible with POS-516N?
