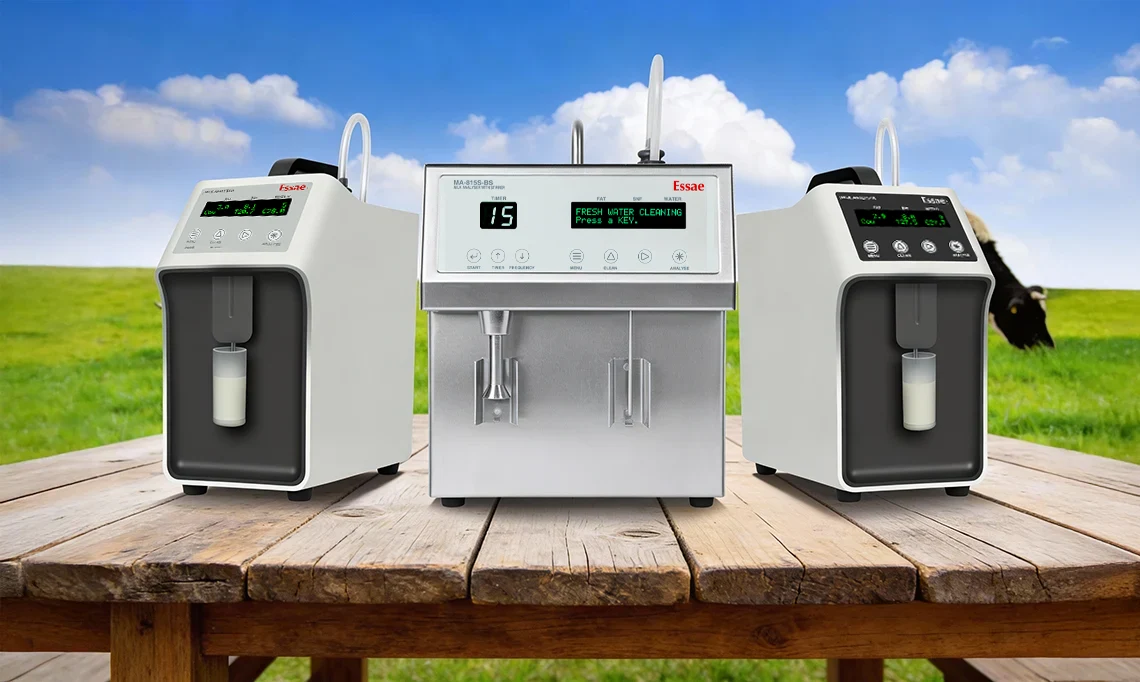

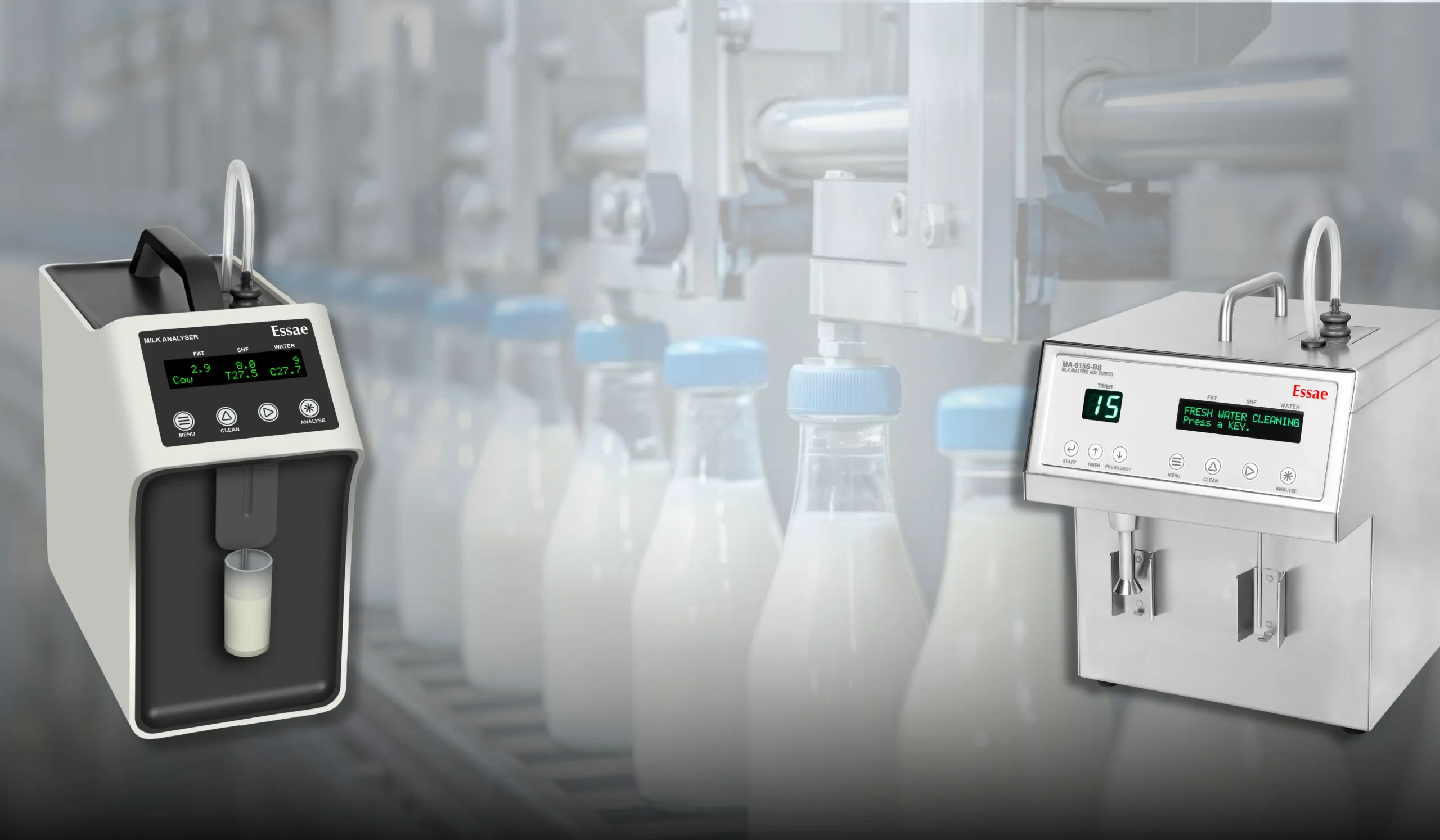

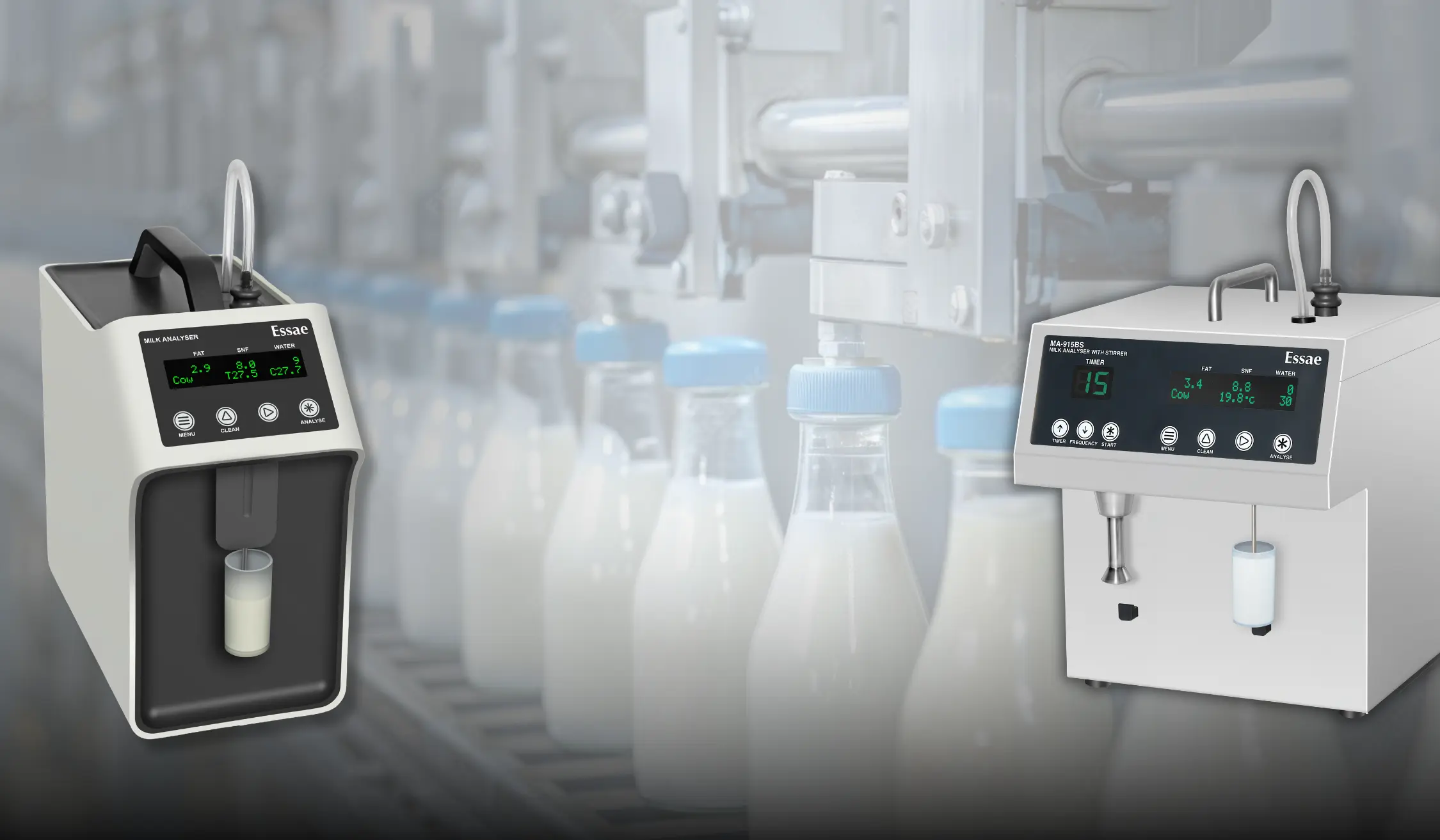

Milk Analyser based on Ultrasonic Technology to accurately Measure & Display Fat, Solids Non Fat (SNF), Corrected Lactometer Reading (CLR) & Added Water in Milk Samples.

Salient Features

ARM

Powerful Processor

Display color

Bright Green

Enclosure

SS-304

Specifications

Schematic Diagram

Specification

Measuring Parameters Range Resolution Accuracy
Fat 0 to 15 % 0.1% +/- 0.1%
SNF 3 to 15 % 0.1% +/- 0.2 %
Added Water 0 to 100 % 1% +/- 3%
CLR 20 to 40 1 +/- 1
Measuring Time 40 sec / sample
Milk Acidity < 25 ⁰ T(degree Thorn)
Milk Temperature 10 to 40 ⁰ C
Milk Sample Volume 25 ml
Display 2 x 20 Character LCD display with Green Back light
Keyword 4 keys
Power Operating Voltage : 230V AC/ 50 Hz, Power Consumption : 40 W
Environmental Condition Ambient Air Temperature : 15 to 45 ⁰ C, Relative Humidity : 30 to 80 %
Interface 1 X RS-232 Serial with cable
Physical Dimensions 138 (W) x 251 (D) x 275 (H) mm
Weight 3.65 kg
